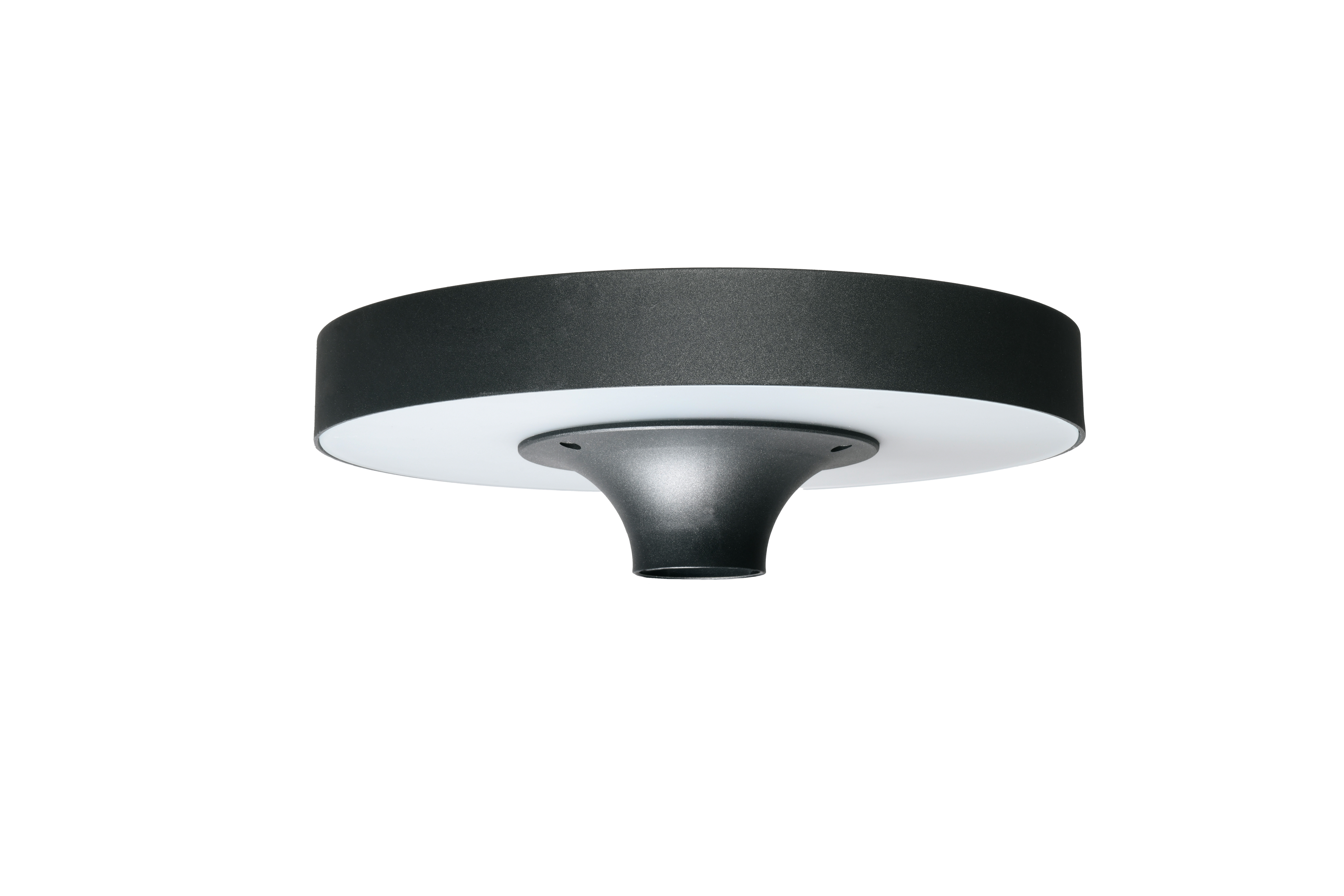

Urban architectural luminaire suitable for pole tops Ø60mm. Cover in die-cast aluminium, anodized and powder-coated with pre-treatment specific for outdoor. Flat, brushed, tempered glass diffuser 5mm thick and reinforced thermoplastic base. Complete with osmotic valve.

CD LED
CD LED
Color Size Power Power supply Luminaire Output Light source Dimmable driver Packing Insulation class Cod
Corten ⌀400x125 mm 35 W 200-240V 50/60Hz 2638 lm Led 3000 K DALI 1 II 250-106817DJ
Anthracite RAL 7016 ⌀400x125 mm 35 W 200-240V 50/60Hz 2638 lm Led 3000 K DALI 1 II 250-106817DS
Corten ⌀400x125 mm 35 W 200-240V 50/60Hz 2797 lm Led 4000 K DALI 1 II 250-106817FJ
Anthracite RAL 7016 ⌀400x125 mm 35 W 200-240V 50/60Hz 2797 lm Led 4000 K DALI 1 II 250-106817FS
Corten ⌀400x125 mm 35 W 200-240V 50/60Hz 2797 lm Led 4000 K   1 II 250-1068182J
Anthracite RAL 7016 ⌀400x125 mm 35 W 200-240V 50/60Hz 2797 lm Led 4000 K   1 II 250-1068182S
Corten ⌀400x125 mm 35 W 200-240V 50/60Hz 2638 lm Led 3000 K   1 II 250-1068184J
Anthracite RAL 7016 ⌀400x125 mm 35 W 200-240V 50/60Hz 2638 lm Led 3000 K   1 II 250-1068184S
Corten ⌀400x125 mm 55 W 200-240V 50/60Hz 3934 lm Led 3000 K DALI 1 II 250-106827DJ
Anthracite RAL 7016 ⌀400x125 mm 55 W 200-240V 50/60Hz 3934 lm Led 3000 K DALI 1 II 250-106827DS
Corten ⌀400x125 mm 55 W 200-240V 50/60Hz 4165 lm Led 4000 K DALI 1 II 250-106827FJ
Anthracite RAL 7016 ⌀400x125 mm 55 W 200-240V 50/60Hz 4165 lm Led 4000 K DALI 1 II 250-106827FS
Corten ⌀400x125 mm 55 W 200-240V 50/60Hz 4165 lm Led 4000 K   1 II 250-1068282J
Anthracite RAL 7016 ⌀400x125 mm 55 W 200-240V 50/60Hz 4165 lm Led 4000 K   1 II 250-1068282S
Corten ⌀400x125 mm 55 W 200-240V 50/60Hz 3934 lm Led 3000 K   1 II 250-1068284J
Anthracite RAL 7016 ⌀400x125 mm 55 W 200-240V 50/60Hz 3934 lm Led 3000 K   1 II 250-1068284S
Corten ⌀400x125 mm 70 W 200-240V 50/60Hz 4788 lm Led 3000 K DALI 1 II 250-106837DJ
Anthracite RAL 7016 ⌀400x125 mm 70 W 200-240V 50/60Hz 4788 lm Led 3000 K DALI 1 II 250-106837DS
Corten ⌀400x125 mm 70 W 200-240V 50/60Hz 5069 lm Led 4000 K DALI 1 II 250-106837FJ
Anthracite RAL 7016 ⌀400x125 mm 70 W 200-240V 50/60Hz 5069 lm Led 4000 K DALI 1 II 250-106837FS
Corten ⌀400x125 mm 70 W 200-240V 50/60Hz 5069 lm Led 4000 K   1 II 250-1068382J
Anthracite RAL 7016 ⌀400x125 mm 70 W 200-240V 50/60Hz 5069 lm Led 4000 K   1 II 250-1068382S
Corten ⌀400x125 mm 70 W 200-240V 50/60Hz 4788 lm Led 3000 K   1 II 250-1068384J
Anthracite RAL 7016 ⌀400x125 mm 70 W 200-240V 50/60Hz 4788 lm Led 3000 K   1 II 250-1068384S
