Urban Lightning
Pole

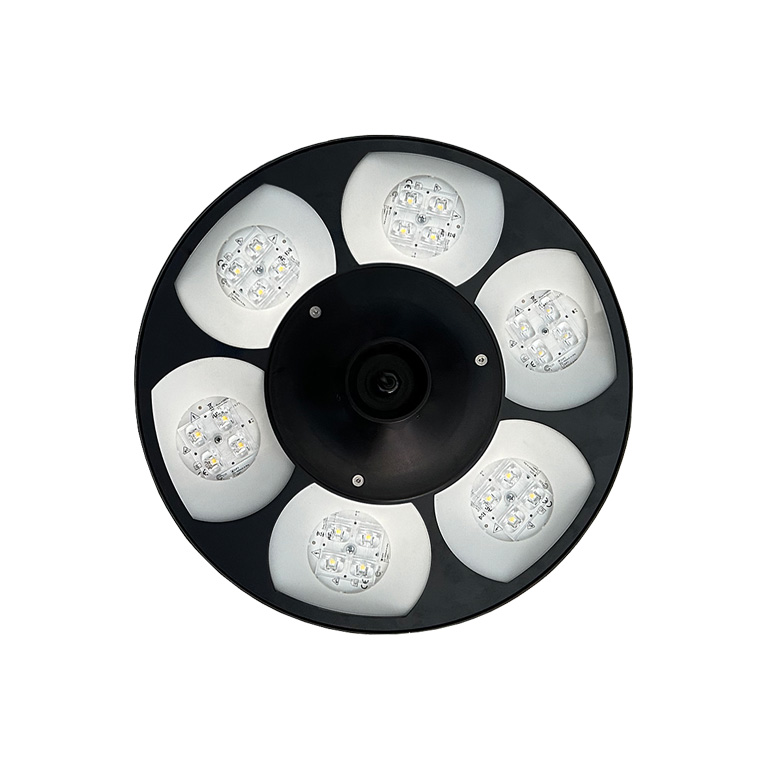

CD LED EVO-6

CD LED EVO-6

Warranty
Protection from external agents
Impact protection
Pre-wired
RG
Cut-Off
Dimming
Anthracite RAL 7016 Corten

Street furniture luminaire for installation on Ø60 mm poles at the top. Upper part in die-cast aluminium, anodised and powder coated, with specific pre-treatment for outdoor use. Diffuser in flat tempered glass with high transmittance and screen-printed, 5 mm thick. Base in reinforced technopolymer and pre-connected cable, fixed by cable gland with built-in osmotic valve.


CD LED EVO-6
Color Version Size Power Power supply Luminaire Output Light source Dimmable driver Packing Insulation class Cod
Corten 2x180° ⌀400x125 mm 30 W 200-240V 50/60Hz 3565 lm Led 3000 K DALI 1 II 250-136817DJ
Anthracite RAL 7016 2x180° ⌀400x125 mm 30 W 200-240V 50/60Hz 3565 lm Led 3000 K DALI 1 II 250-136817DS
Corten 2x180° ⌀400x125 mm 30 W 200-240V 50/60Hz 3750 lm Led 4000 K DALI 1 II 250-136817FJ
Anthracite RAL 7016 2x180° ⌀400x125 mm 30 W 200-240V 50/60Hz 3750 lm Led 4000 K DALI 1 II 250-136817FS
Corten 2x180° ⌀400x125 mm 30 W 200-240V 50/60Hz 3750 lm Led 4000 K   1 II 250-1368182J
Anthracite RAL 7016 2x180° ⌀400x125 mm 30 W 200-240V 50/60Hz 3750 lm Led 4000 K   1 II 250-1368182S
Corten   ⌀400x125 mm 30 W 200-240V 50/60Hz 3565 lm Led 3000 K   1 II 250-1368184J
Anthracite RAL 7016 2x180° ⌀400x125 mm 30 W 200-240V 50/60Hz 3565 lm Led 3000 K   1 II 250-1368184S
Corten 2x180° ⌀400x125 mm 40 W 200-240V 50/60Hz 4923 lm Led 3000 K DALI 1 II 250-136827DJ
Anthracite RAL 7016 2x180° ⌀400x125 mm 40 W 200-240V 50/60Hz 4923 lm Led 3000 K DALI 1 II 250-136827DS
Corten 2x180° ⌀400x125 mm 40 W 200-240V 50/60Hz 5178 lm Led 4000 K DALI 1 II 250-136827FJ
Anthracite RAL 7016 2x180° ⌀400x125 mm 40 W 200-240V 50/60Hz 5178 lm Led 4000 K DALI 1 II 250-136827FS
Corten 2x180° ⌀400x125 mm 40 W 200-240V 50/60Hz 5178 lm Led 4000 K   1 II 250-1368282J
Anthracite RAL 7016 2x180° ⌀400x125 mm 40 W 200-240V 50/60Hz 5178 lm Led 4000 K   1 II 250-1368282S
Corten 2x180° ⌀400x125 mm 40 W 200-240V 50/60Hz 4923 lm Led 3000 K   1 II 250-1368284J
Anthracite RAL 7016 2x180° ⌀400x125 mm 40 W 200-240V 50/60Hz 4923 lm Led 3000 K   1 II 250-1368284S
Corten 2x180° ⌀400x125 mm 50 W 200-240V 50/60Hz 6075 lm Led 3000 K DALI 1 II 250-136837DJ
Anthracite RAL 7016 2x180° ⌀400x125 mm 50 W 200-240V 50/60Hz 6075 lm Led 3000 K DALI 1 II 250-136837DS
Corten 2x180° ⌀400x125 mm 50 W 200-240V 50/60Hz 6391 lm Led 4000 K DALI 1 II 250-136837FJ
Anthracite RAL 7016 2x180° ⌀400x125 mm 50 W 200-240V 50/60Hz 6391 lm Led 4000 K DALI 1 II 250-136837FS
Corten 2x180° ⌀400x125 mm 50 W 200-240V 50/60Hz 6391 lm Led 4000 K   1 II 250-1368382J
Anthracite RAL 7016 2x180° ⌀400x125 mm 50 W 200-240V 50/60Hz 6391 lm Led 4000 K   1 II 250-1368382S
Corten 2x180° ⌀400x125 mm 50 W 200-240V 50/60Hz 6075 lm Led 3000 K   1 II 250-1368384J
Anthracite RAL 7016 2x180° ⌀400x125 mm 50 W 200-240V 50/60Hz 6075 lm Led 3000 K   1 II 250-1368384S
Corten 2x180° ⌀400x125 mm 72 W 200-240V 50/60Hz 8497 lm Led 3000 K DALI 1 II 250-136847DJ
Anthracite RAL 7016 2x180° ⌀400x125 mm 72 W 200-240V 50/60Hz 8497 lm Led 3000 K DALI 1 II 250-136847DS
Corten 2x180° ⌀400x125 mm 72 W 200-240V 50/60Hz 8875 lm Led 4000 K DALI 1 II 250-136847FJ
Anthracite RAL 7016 2x180° ⌀400x125 mm 72 W 200-240V 50/60Hz 8875 lm Led 4000 K DALI 1 II 250-136847FS
Corten 2x180° ⌀400x125 mm 72 W 200-240V 50/60Hz 8875 lm Led 4000 K   1 II 250-1368482J
Anthracite RAL 7016 2x180° ⌀400x125 mm 72 W 200-240V 50/60Hz 8875 lm Led 4000 K   1 II 250-1368482S
Corten 2x180° ⌀400x125 mm 72 W 200-240V 50/60Hz 8497 lm Led 3000 K   1 II 250-1368484J
Anthracite RAL 7016 2x180° ⌀400x125 mm 72 W 200-240V 50/60Hz 8497 lm Led 3000 K   1 II 250-1368484S
Corten 360° ⌀400x125 mm 30 W 200-240V 50/60Hz 3565 lm Led 3000 K DALI 1 II 250-136917DJ
Anthracite RAL 7016 360° ⌀400x125 mm 30 W 200-240V 50/60Hz 3565 lm Led 3000 K DALI 1 II 250-136917DS
Corten 360° ⌀400x125 mm 30 W 200-240V 50/60Hz 3570 lm Led 4000 K DALI 1 II 250-136917FJ
Anthracite RAL 7016 360° ⌀400x125 mm 30 W 200-240V 50/60Hz 3570 lm Led 4000 K DALI 1 II 250-136917FS
Corten 360° ⌀400x125 mm 30 W 200-240V 50/60Hz 3570 lm Led 4000 K   1 II 250-1369182J
Anthracite RAL 7016 360° ⌀400x125 mm 30 W 200-240V 50/60Hz 3570 lm Led 4000 K   1 II 250-1369182S
Corten 360° ⌀400x125 mm 30 W 200-240V 50/60Hz 3565 lm Led 3000 K   1 II 250-1369184J
Anthracite RAL 7016 360° ⌀400x125 mm 30 W 200-240V 50/60Hz 3565 lm Led 3000 K   1 II 250-1369184S
Corten 360° ⌀400x125 mm 40 W 200-240V 50/60Hz 4923 lm Led 3000 K DALI 1 II 250-136927DJ
Anthracite RAL 7016 360° ⌀400x125 mm 40 W 200-240V 50/60Hz 4923 lm Led 3000 K DALI 1 II 250-136927DS
Corten 360° ⌀400x125 mm 40 W 200-240V 50/60Hz 5178 lm Led 4000 K DALI 1 II 250-136927FJ
Anthracite RAL 7016 360° ⌀400x125 mm 40 W 200-240V 50/60Hz 5178 lm Led 4000 K DALI 1 II 250-136927FS
Corten 360° ⌀400x125 mm 40 W 200-240V 50/60Hz 5178 lm Led 4000 K   1 II 250-1369282J
Anthracite RAL 7016 360° ⌀400x125 mm 40 W 200-240V 50/60Hz 5178 lm Led 4000 K   1 II 250-1369282S
Corten 360° ⌀400x125 mm 40 W 200-240V 50/60Hz 4923 lm Led 3000 K   1 II 250-1369284J
Anthracite RAL 7016 360° ⌀400x125 mm 40 W 200-240V 50/60Hz 4923 lm Led 3000 K   1 II 250-1369284S
Corten 360° ⌀400x125 mm 50 W 200-240V 50/60Hz 6075 lm Led 3000 K DALI 1 II 250-136937DJ
Anthracite RAL 7016 360° ⌀400x125 mm 50 W 200-240V 50/60Hz 6075 lm Led 3000 K DALI 1 II 250-136937DS
Corten 360° ⌀400x125 mm 50 W 200-240V 50/60Hz 6391 lm Led 4000 K DALI 1 II 250-136937FJ
Anthracite RAL 7016 360° ⌀400x125 mm 50 W 200-240V 50/60Hz 6391 lm Led 4000 K DALI 1 II 250-136937FS
Corten 360° ⌀400x125 mm 50 W 200-240V 50/60Hz 6391 lm Led 4000 K   1 II 250-1369382J
Anthracite RAL 7016 360° ⌀400x125 mm 50 W 200-240V 50/60Hz 6391 lm Led 4000 K   1 II 250-1369382S
Corten 360° ⌀400x125 mm 50 W 200-240V 50/60Hz 6075 lm Led 3000 K   1 II 250-1369384J
Anthracite RAL 7016 360° ⌀400x125 mm 50 W 200-240V 50/60Hz 6075 lm Led 3000 K   1 II 250-1369384S
Corten 360° ⌀400x125 mm 72 W 200-240V 50/60Hz 8497 lm Led 3000 K DALI 1 II 250-136947DJ
Anthracite RAL 7016 360° ⌀400x125 mm 72 W 200-240V 50/60Hz 8497 lm Led 3000 K DALI 1 II 250-136947DS
Anthracite RAL 7016 360° ⌀400x125 mm 72 W 200-240V 50/60Hz 8875 lm Led 4000 K DALI 1 II 250-136947FJ
Anthracite RAL 7016 360° ⌀400x125 mm 50 W 200-240V 50/60Hz 6391 lm Led 4000 K DALI 1 II 250-136947FS
Corten 360° ⌀400x125 mm 72 W 200-240V 50/60Hz 8875 lm Led 4000 K   1 II 250-1369482J
Anthracite RAL 7016 360° ⌀400x125 mm 72 W 200-240V 50/60Hz 8875 lm Led 4000 K   1 II 250-1369482S
Corten 360° ⌀400x125 mm 72 W 200-240V 50/60Hz 8497 lm Led 3000 K   1 II 250-1369484J
Anthracite RAL 7016 360° ⌀400x125 mm 72 W 200-240V 50/60Hz 8497 lm Led 3000 K   1 II 250-1369484S
