Urban Lightning
Pole
DISCOVERY TP

DISCOVERY TP

Warranty
Protection from external agents
Impact protection
Pre-wired
RG
Cut-Off
Dimming
Virtual Midnight
Anthracite RAL 7016

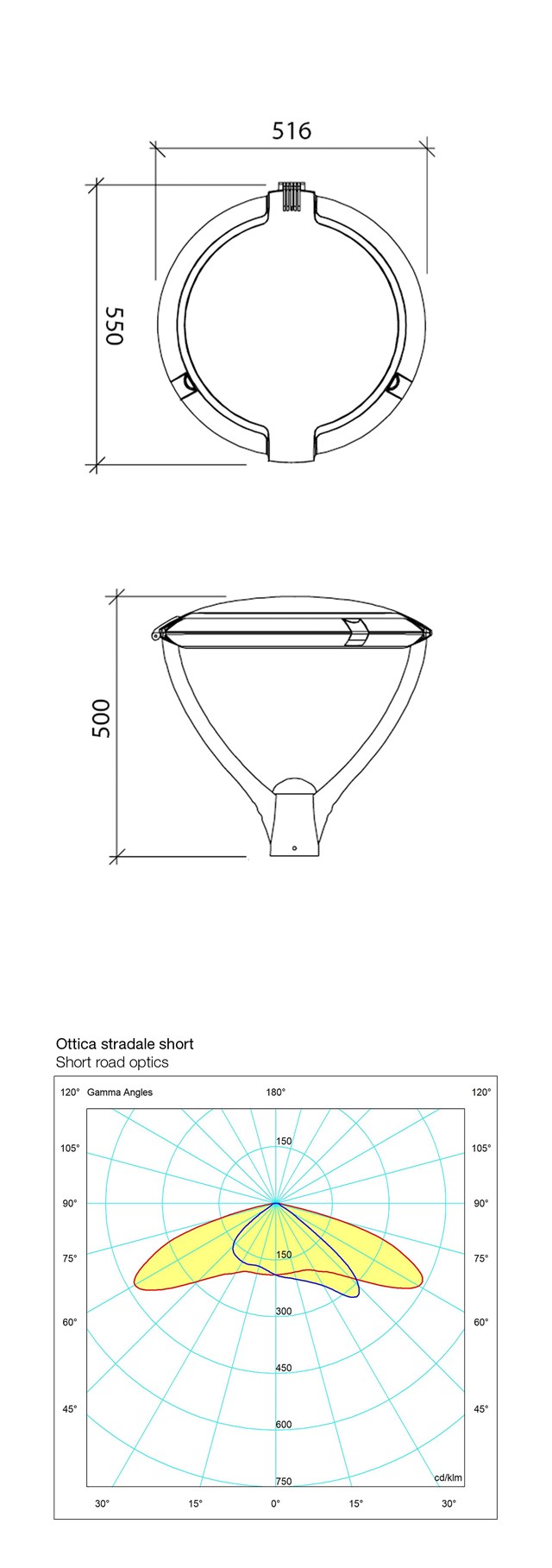

Urban architectural luminaire suitable for pole tops Ø60/76mm. Made in die-cast aluminium, anodized and powder-coated with pre-treatment specific for outdoor. Tempered flat glass diffuser 4mm thick and removable wiring compartment for tool-free maintenance. Transparent PMMA lenses UV resistant. Driver with over voltage protection -common mode 10kv, differential mode 6kv. Complete with cut-out system via disconnecting switch and osmotic valve.

DISCOVERY TP
DISCOVERY TP
Color Size Optics Power Power supply Luminaire Output Light source Dimmable driver Packing Insulation class Cod
Anthracite RAL 7016 ⌀516x550x500 mm Pedestrian 35 W 220-240V 50/60Hz 4493 lm Led 3000 K DALI 1 II 250-212007DS
Anthracite RAL 7016 ⌀516x550x500 mm Pedestrian 35 W 220-240V 50/60Hz 4849 lm Led 4000 K DALI 1 II 250-212007FS
Anthracite RAL 7016 ⌀516x550x500 mm Pedestrian 35 W 220-240V 50/60Hz 4849 lm Led 4000 K   1 II 250-2120082S
Anthracite RAL 7016 ⌀516x550x500 mm Pedestrian 35 W 220-240V 50/60Hz 4493 lm Led 3000 K   1 II 250-2120084S
Anthracite RAL 7016 ⌀516x550x500 mm Round symmetrical 35 W 220-240V 50/60Hz 4127 lm Led 3000 K DALI 1 II 250-212017DS
Anthracite RAL 7016 ⌀516x550x500 mm Round symmetrical 35 W 220-240V 50/60Hz 4453 lm Led 4000 K DALI 1 II 250-212017FS
Anthracite RAL 7016 ⌀516x550x500 mm Round symmetrical 35 W 220-240V 50/60Hz 4453 lm Led 4000 K   1 II 250-2120182S
Anthracite RAL 7016 ⌀516x550x500 mm Round symmetrical 35 W 220-240V 50/60Hz 4127 lm Led 3000 K   1 II 250-2120184S
Anthracite RAL 7016 ⌀516x550x500 mm Street short 35 W 220-240V 50/60Hz 4479 lm Led 3000 K DALI 1 II 250-212027DS
Anthracite RAL 7016 ⌀516x550x500 mm Street short 35 W 220-240V 50/60Hz 4834 lm Led 4000 K DALI 1 II 250-212027FS
Anthracite RAL 7016 ⌀516x550x500 mm Street short 35 W 220-240V 50/60Hz 4834 lm Led 4000 K   1 II 250-2120282S
Anthracite RAL 7016 ⌀516x550x500 mm Street short 35 W 220-240V 50/60Hz 4479 lm Led 3000 K   1 II 250-2120284S
Anthracite RAL 7016 ⌀516x550x500 mm Street medium 35 W 220-240V 50/60Hz 4447 lm Led 3000 K DALI 1 II 250-212037DS
Anthracite RAL 7016 ⌀516x550x500 mm Street medium 35 W 220-240V 50/60Hz 4799 lm Led 4000 K DALI 1 II 250-212037FS
Anthracite RAL 7016 ⌀516x550x500 mm Street medium 35 W 220-240V 50/60Hz 4799 lm Led 4000 K   1 II 250-2120382S
Anthracite RAL 7016 ⌀516x550x500 mm Street medium 35 W 220-240V 50/60Hz 4447 lm Led 3000 K   1 II 250-2120384S
Anthracite RAL 7016 ⌀516x550x500 mm Pedestrian 55,4 W 220-240V 50/60Hz 6550 lm Led 3000 K DALI 1 II 250-212047DS
Anthracite RAL 7016 ⌀516x550x500 mm Pedestrian 55,4 W 220-240V 50/60Hz 7042 lm Led 4000 K DALI 1 II 250-212047FS
Anthracite RAL 7016 ⌀516x550x500 mm Pedestrian 55,4 W 220-240V 50/60Hz 7042 lm Led 4000 K   1 II 250-2120482S
Anthracite RAL 7016 ⌀516x550x500 mm Pedestrian 55,4 W 220-240V 50/60Hz 6550 lm Led 3000 K   1 II 250-2120484S
Anthracite RAL 7016 ⌀516x550x500 mm Round symmetrical 55,4 W 220-240V 50/60Hz 6016 lm Led 3000 K DALI 1 II 250-212057DS
Anthracite RAL 7016 ⌀516x550x500 mm Round symmetrical 55,4 W 220-240V 50/60Hz 6468 lm Led 4000 K DALI 1 II 250-212057FS
Anthracite RAL 7016 ⌀516x550x500 mm Round symmetrical 55,4 W 220-240V 50/60Hz 6468 lm Led 4000 K   1 II 250-2120582S
Anthracite RAL 7016 ⌀516x550x500 mm Round symmetrical 55,4 W 220-240V 50/60Hz 6016 lm Led 3000 K   1 II 250-2120584S
Anthracite RAL 7016 ⌀516x550x500 mm Street short 55,4 W 220-240V 50/60Hz 6530 lm Led 3000 K DALI 1 II 250-212067DS
Anthracite RAL 7016 ⌀516x550x500 mm Street short 55,4 W 220-240V 50/60Hz 7021 lm Led 4000 K DALI 1 II 250-212067FS
Anthracite RAL 7016 ⌀516x550x500 mm Street short 55,4 W 220-240V 50/60Hz 7021 lm Led 4000 K   1 II 250-2120682S
Anthracite RAL 7016 ⌀516x550x500 mm Street short 55,4 W 220-240V 50/60Hz 6530 lm Led 3000 K   1 II 250-2120684S
Anthracite RAL 7016 ⌀516x550x500 mm Street medium 55,4 W 220-240V 50/60Hz 6483 lm Led 3000 K DALI 1 II 250-212077DS
Anthracite RAL 7016 ⌀516x550x500 mm Street medium 55,4 W 220-240V 50/60Hz 6971 lm Led 4000 K DALI 1 II 250-212077FS
Anthracite RAL 7016 ⌀516x550x500 mm Street medium 55,4 W 220-240V 50/60Hz 6971 lm Led 4000 K   1 II 250-2120782S
Anthracite RAL 7016 ⌀516x550x500 mm Street medium 55,4 W 220-240V 50/60Hz 6483 lm Led 3000 K   1 II 250-2120784S
Anthracite RAL 7016 ⌀516x550x500 mm Pedestrian 35 W 220-240V 50/60Hz 4849 lm Led 4000 K   1 I 250-2124082S
Anthracite RAL 7016 ⌀516x550x500 mm Pedestrian 35 W 220-240V 50/60Hz 4493 lm Led 3000 K   1 I 250-2124084S
Anthracite RAL 7016 ⌀516x550x500 mm Round symmetrical 35 W 220-240V 50/60Hz 4453 lm Led 4000 K   1 I 250-2124182S
Anthracite RAL 7016 ⌀516x550x500 mm Round symmetrical 35 W 220-240V 50/60Hz 4127 lm Led 3000 K   1 I 250-2124184S
Anthracite RAL 7016 ⌀516x550x500 mm Street short 35 W 220-240V 50/60Hz 4834 lm Led 4000 K   1 I 250-2124282S
Anthracite RAL 7016 ⌀516x550x500 mm Street short 35 W 220-240V 50/60Hz 4479 lm Led 3000 K   1 I 250-2124284S
Anthracite RAL 7016 ⌀516x550x500 mm Street medium 35 W 220-240V 50/60Hz 4799 lm Led 4000 K   1 I 250-2124382S
Anthracite RAL 7016 ⌀516x550x500 mm Street medium 35 W 220-240V 50/60Hz 4447 lm Led 3000 K   1 I 250-2124384S
Anthracite RAL 7016 ⌀516x550x500 mm Pedestrian 55,4 W 220-240V 50/60Hz 7042 lm Led 4000 K   1 I 250-2124482S
Anthracite RAL 7016 ⌀516x550x500 mm Pedestrian 55,4 W 220-240V 50/60Hz 6550 lm Led 3000 K   1 I 250-2124484S
Anthracite RAL 7016 ⌀516x550x500 mm Round symmetrical 55,4 W 220-240V 50/60Hz 6468 lm Led 4000 K   1 I 250-2124582S
Anthracite RAL 7016 ⌀516x550x500 mm Round symmetrical 55,4 W 220-240V 50/60Hz 6016 lm Led 3000 K   1 I 250-2124584S
Anthracite RAL 7016 ⌀516x550x500 mm Street short 55,4 W 220-240V 50/60Hz 7021 lm Led 4000 K   1 I 250-2124682S
Anthracite RAL 7016 ⌀516x550x500 mm Street short 55,4 W 220-240V 50/60Hz 6530 lm Led 3000 K   1 I 250-2124684S
Anthracite RAL 7016 ⌀516x550x500 mm Street medium 55,4 W 220-240V 50/60Hz 6971 lm Led 4000 K   1 I 250-2124782S
Anthracite RAL 7016 ⌀516x550x500 mm Street medium 55,4 W 220-240V 50/60Hz 6483 lm Led 3000 K   1 I 250-2124784S
