DISCOVERY SPAN WIRE

DISCOVERY SPAN WIRE

Warranty
Protection from external agents
Impact protection
Pre-wired
RG
Cut-Off
Dimming
Virtual Midnight
Anthracite RAL 7016

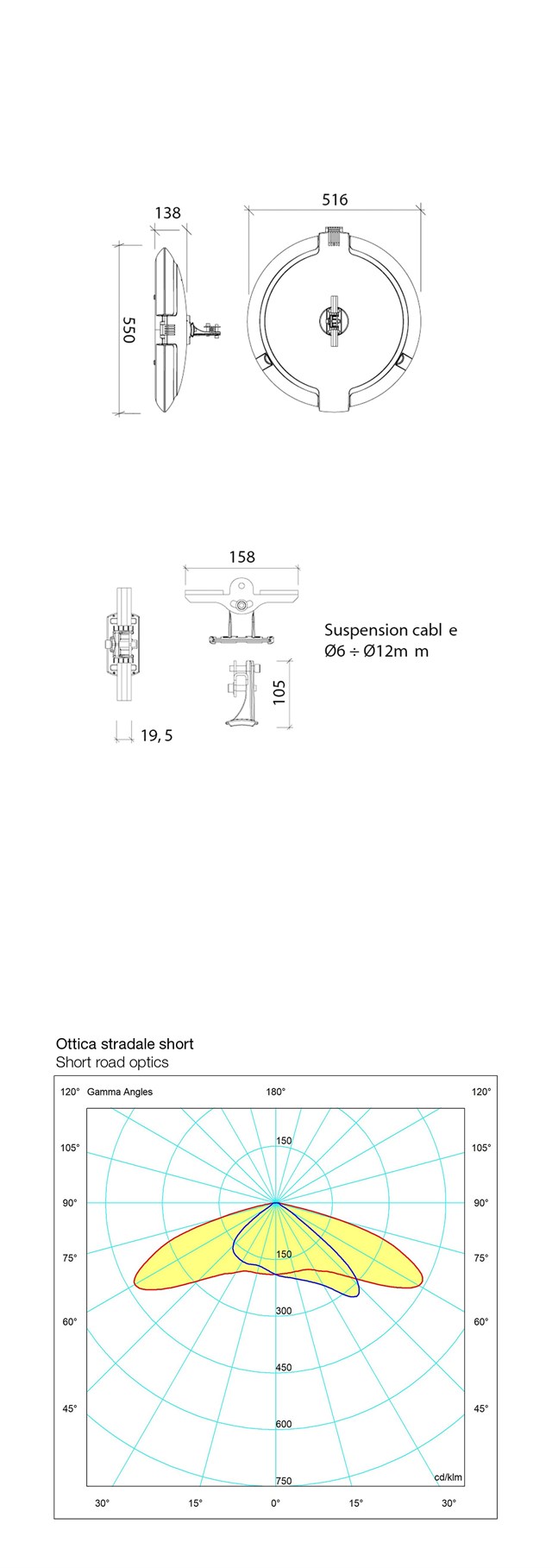

Urban architectural luminaire, suitable for span wire installation. Made in die-cast aluminium, anodized and powder-coated with pre-treatment specific for outdoor. Tempered flat glass diffuser 4mm thick and removable wiring compartment for tool-free maintenance. Transparent PMMA lenses UV resistant. Allowed diameters of the suspension cable: Ø6 ÷ Ø12m. Driver with over voltage protection -common mode 10kv, differential mode 6kv. Complete with cut-out system via disconnecting switch and osmotic valve.

DISCOVERY SPAN WIRE
DISCOVERY SPAN WIRE

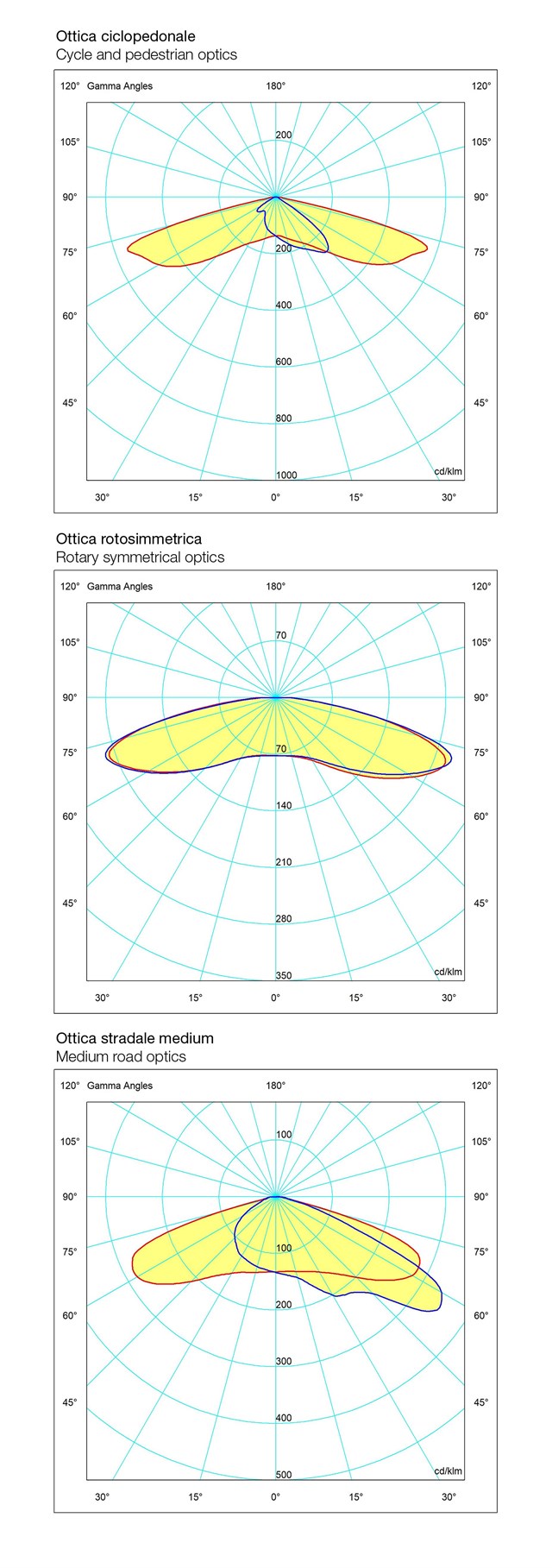

Color Size Optics Power Power supply Luminaire Output Light source Dimmable driver Packing Insulation class Cod
Anthracite RAL 7016 ⌀516x138x550 mm Pedestrian 35 W 220-240V 50/60Hz 4493 lm Led 3000 K DALI 1 II 250-212107DS
Anthracite RAL 7016 ⌀516x138x550 mm Pedestrian 35 W 220-240V 50/60Hz 4849 lm Led 4000 K DALI 1 II 250-212107FS
Anthracite RAL 7016 ⌀516x138x550 mm Pedestrian 35 W 220-240V 50/60Hz 4849 lm Led 4000 K   1 II 250-2121082S
Anthracite RAL 7016 ⌀516x138x550 mm Pedestrian 35 W 220-240V 50/60Hz 4493 lm Led 3000 K   1 II 250-2121084S
Anthracite RAL 7016 ⌀516x138x550 mm Round symmetrical 35 W 220-240V 50/60Hz 4127 lm Led 3000 K DALI 1 II 250-212117DS
Anthracite RAL 7016 ⌀516x138x550 mm Round symmetrical 35 W 220-240V 50/60Hz 4453 lm Led 4000 K DALI 1 II 250-212117FS
Anthracite RAL 7016 ⌀516x138x550 mm Round symmetrical 35 W 220-240V 50/60Hz 4453 lm Led 4000 K   1 II 250-2121182S
Anthracite RAL 7016 ⌀516x138x550 mm Round symmetrical 35 W 220-240V 50/60Hz 4127 lm Led 3000 K   1 II 250-2121184S
Anthracite RAL 7016 ⌀516x138x550 mm Street short 35 W 220-240V 50/60Hz 4479 lm Led 3000 K DALI 1 II 250-212127DS
Anthracite RAL 7016 ⌀516x138x550 mm Street short 35 W 220-240V 50/60Hz 4834 lm Led 4000 K DALI 1 II 250-212127FS
Anthracite RAL 7016 ⌀516x138x550 mm Street short 35 W 220-240V 50/60Hz 4834 lm Led 4000 K   1 II 250-2121282S
Anthracite RAL 7016 ⌀516x138x550 mm Street short 35 W 220-240V 50/60Hz 4479 lm Led 3000 K   1 II 250-2121284S
Anthracite RAL 7016 ⌀516x138x550 mm Street medium 35 W 220-240V 50/60Hz 4447 lm Led 3000 K DALI 1 II 250-212137DS
Anthracite RAL 7016 ⌀516x138x550 mm Street medium 35 W 220-240V 50/60Hz 4799 lm Led 4000 K DALI 1 II 250-212137FS
Anthracite RAL 7016 ⌀516x138x550 mm Street medium 35 W 220-240V 50/60Hz 4799 lm Led 4000 K   1 II 250-2121382S
Anthracite RAL 7016 ⌀516x138x550 mm Street medium 35 W 220-240V 50/60Hz 4447 lm Led 3000 K   1 II 250-2121384S
Anthracite RAL 7016 ⌀516x138x550 mm Pedestrian 55,4 W 220-240V 50/60Hz 6550 lm Led 3000 K DALI 1 II 250-212147DS
Anthracite RAL 7016 ⌀516x138x550 mm Pedestrian 55,4 W 220-240V 50/60Hz 7042 lm Led 4000 K DALI 1 II 250-212147FS
Anthracite RAL 7016 ⌀516x138x550 mm Pedestrian 55,4 W 220-240V 50/60Hz 7042 lm Led 4000 K   1 II 250-2121482S
Anthracite RAL 7016 ⌀516x138x550 mm Pedestrian 55,4 W 220-240V 50/60Hz 6550 lm Led 3000 K   1 II 250-2121484S
Anthracite RAL 7016 ⌀516x138x550 mm Round symmetrical 55,4 W 220-240V 50/60Hz 6016 lm Led 3000 K DALI 1 II 250-212157DS
Anthracite RAL 7016 ⌀516x138x550 mm Round symmetrical 55,4 W 220-240V 50/60Hz 6468 lm Led 4000 K DALI 1 II 250-212157FS
Anthracite RAL 7016 ⌀516x138x550 mm Round symmetrical 55,4 W 220-240V 50/60Hz 6468 lm Led 4000 K   1 II 250-2121582S
Anthracite RAL 7016 ⌀516x138x550 mm Round symmetrical 55,4 W 220-240V 50/60Hz 6016 lm Led 3000 K   1 II 250-2121584S
Anthracite RAL 7016 ⌀516x138x550 mm Street short 55,4 W 220-240V 50/60Hz 6530 lm Led 3000 K DALI 1 II 250-212167DS
Anthracite RAL 7016 ⌀516x138x550 mm Street short 55,4 W 220-240V 50/60Hz 7021 lm Led 4000 K DALI 1 II 250-212167FS
Anthracite RAL 7016 ⌀516x138x550 mm Street short 55,4 W 220-240V 50/60Hz 7021 lm Led 4000 K   1 II 250-2121682S
Anthracite RAL 7016 ⌀516x138x550 mm Street short 55,4 W 220-240V 50/60Hz 6530 lm Led 3000 K   1 II 250-2121684S
Anthracite RAL 7016 ⌀516x138x550 mm Street medium 55,4 W 220-240V 50/60Hz 6483 lm Led 3000 K DALI 1 II 250-212177DS
Anthracite RAL 7016 ⌀516x138x550 mm Street medium 55,4 W 220-240V 50/60Hz 6971 lm Led 4000 K DALI 1 II 250-212177FS
Anthracite RAL 7016 ⌀516x138x550 mm Street medium 55,4 W 220-240V 50/60Hz 6971 lm Led 4000 K   1 II 250-2121782S
Anthracite RAL 7016 ⌀516x138x550 mm Street medium 55,4 W 220-240V 50/60Hz 6483 lm Led 3000 K   1 II 250-2121784S
Anthracite RAL 7016 ⌀516x138x550 mm Pedestrian 35 W 220-240V 50/60Hz 4849 lm Led 4000 K   1 I 250-2125082S
Anthracite RAL 7016 ⌀516x138x550 mm Pedestrian 35 W 220-240V 50/60Hz 4493 lm Led 3000 K   1 I 250-2125084S
Anthracite RAL 7016 ⌀516x138x550 mm Round symmetrical 35 W 220-240V 50/60Hz 4453 lm Led 4000 K   1 I 250-2125182S
Anthracite RAL 7016 ⌀516x138x550 mm Round symmetrical 35 W 220-240V 50/60Hz 4127 lm Led 3000 K   1 I 250-2125184S
Anthracite RAL 7016 ⌀516x138x550 mm Street short 35 W 220-240V 50/60Hz 4834 lm Led 4000 K   1 I 250-2125282S
Anthracite RAL 7016 ⌀516x138x550 mm Street short 35 W 220-240V 50/60Hz 4479 lm Led 3000 K   1 I 250-2125284S
Anthracite RAL 7016 ⌀516x138x550 mm Street medium 35 W 220-240V 50/60Hz 4799 lm Led 4000 K   1 I 250-2125382S
Anthracite RAL 7016 ⌀516x138x550 mm Street medium 35 W 220-240V 50/60Hz 4447 lm Led 3000 K   1 I 250-2125384S
Anthracite RAL 7016 ⌀516x138x550 mm Pedestrian 55,4 W 220-240V 50/60Hz 7042 lm Led 4000 K   1 I 250-2125482S
Anthracite RAL 7016 ⌀516x138x550 mm Pedestrian 55,4 W 220-240V 50/60Hz 6550 lm Led 3000 K   1 I 250-2125484S
Anthracite RAL 7016 ⌀516x138x550 mm Round symmetrical 55,4 W 220-240V 50/60Hz 6468 lm Led 4000 K   1 I 250-2125582S
Anthracite RAL 7016 ⌀516x138x550 mm Round symmetrical 55,4 W 220-240V 50/60Hz 6016 lm Led 3000 K   1 I 250-2125584S
Anthracite RAL 7016 ⌀516x138x550 mm Street short 55,4 W 220-240V 50/60Hz 7021 lm Led 4000 K   1 I 250-2125682S
Anthracite RAL 7016 ⌀516x138x550 mm Street short 55,4 W 220-240V 50/60Hz 6530 lm Led 3000 K   1 I 250-2125684S
Anthracite RAL 7016 ⌀516x138x550 mm Street medium 55,4 W 220-240V 50/60Hz 6971 lm Led 4000 K   1 I 250-2125782S
Anthracite RAL 7016 ⌀516x138x550 mm Street medium 55,4 W 220-240V 50/60Hz 6483 lm Led 3000 K   1 I 250-2125784S
