Warranty
Seafront installation
Protection from external agents
Impact protection
RG
Corten Grey RAL 9006 Black RAL 9005 Anthracite RAL 7016 White RAL 9003

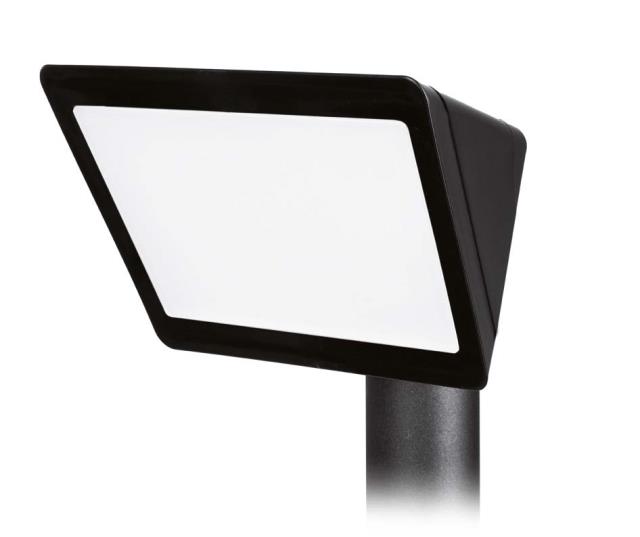

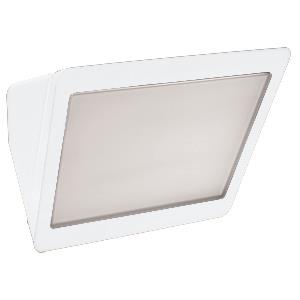

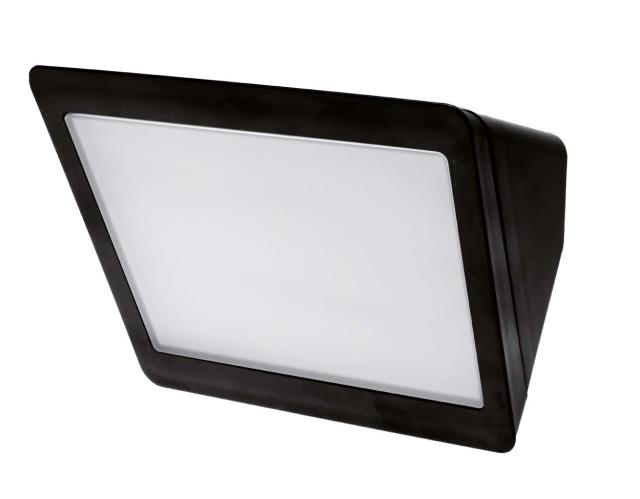

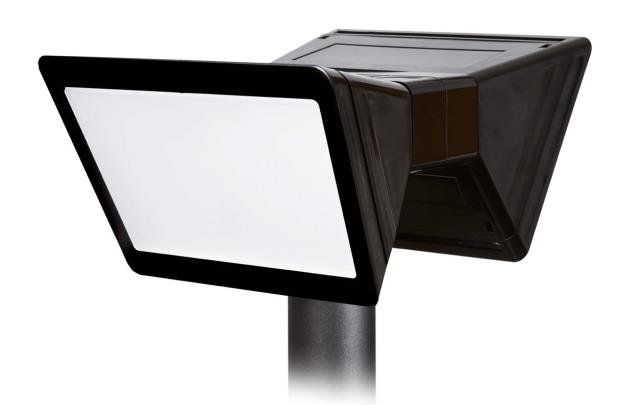

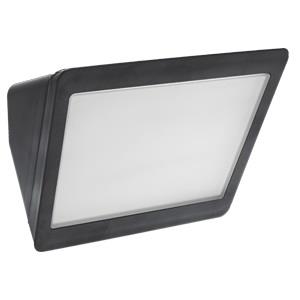

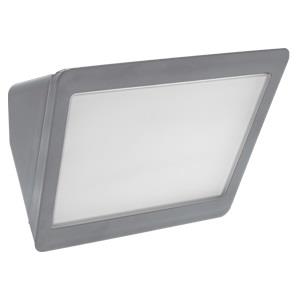

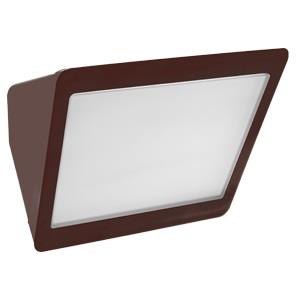

Residential luminaire for installation on walls or on poles Ø 60mm through the relevant pole-top adapter. Particularly suitable for saline environments; the housing is made in polycarbonate coloured granule and the diffuser in translucent PMMA UV resistant. Golf pole top adapter 1-2 lights in polycarbonate coloured granule on request.

VERSUS
VERSUS

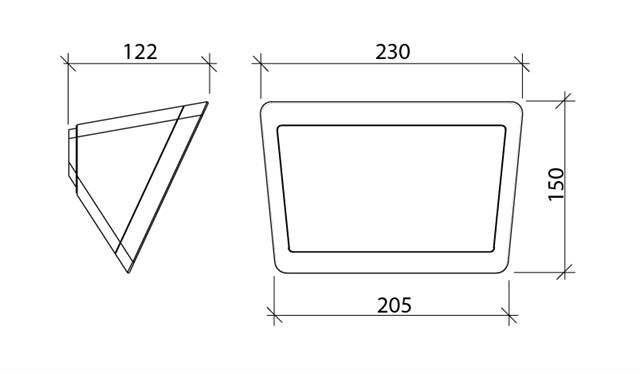

Lamp connection Color Size Power Power supply Luminaire Output Light source Packing Sensor Insulation class Cod
E27 White RAL 9003 122x230x150 mm max 10 W 250V max   Led Lamp 1   II 100-1011101B
E27 Corten 122x230x150 mm max 10 W 250V max   Led Lamp 1   II 100-1011101J
E27 Grey RAL 9006 122x230x150 mm max 10 W 250V max   Led Lamp 1   II 100-1011101M
E27 Black RAL 9005 122x230x150 mm max 10 W 250V max   Led Lamp 1   II 100-1011101N
E27 Anthracite RAL 7016 122x230x150 mm max 10 W 250V max   Led Lamp 1   II 100-1011101S
  White RAL 9003 122x230x150 mm 13,4 W 220-240V 50/60Hz 1093 lm Led 4000 K 1 II 100-101117AB
  Corten 122x230x150 mm 13,4 W 220-240V 50/60Hz 1093 lm Led 4000 K 1 II 100-101117AJ
  Grey RAL 9006 122x230x150 mm 13,4 W 220-240V 50/60Hz 1093 lm Led 4000 K 1 II 100-101117AM
  Black RAL 9005 122x230x150 mm 13,4 W 220-240V 50/60Hz 1093 lm Led 4000 K 1 II 100-101117AN
  Anthracite RAL 7016 122x230x150 mm 13,4 W 220-240V 50/60Hz 1093 lm Led 4000 K 1 II 100-101117AS
  White RAL 9003 122x230x150 mm 13,4 W 220-240V 50/60Hz 1063 lm Led 3000 K 1 II 100-101117BB
  Corten 122x230x150 mm 13,4 W 220-240V 50/60Hz 1063 lm Led 3000 K 1 II 100-101117BJ
  Grey RAL 9006 122x230x150 mm 13,4 W 220-240V 50/60Hz 1063 lm Led 3000 K 1 II 100-101117BM
  Black RAL 9005 122x230x150 mm 13,4 W 220-240V 50/60Hz 1063 lm Led 3000 K 1 II 100-101117BN
  Anthracite RAL 7016 122x230x150 mm 13,4 W 220-240V 50/60Hz 1063 lm Led 3000 K 1 II 100-101117BS
  White RAL 9003 122x230x150 mm 12,3 W 220-240V 50/60Hz 1093 lm Led 4000 K 1   II 100-1011182B
  Corten 122x230x150 mm 12,3 W 220-240V 50/60Hz 1093 lm Led 4000 K 1   II 100-1011182J
  Grey RAL 9006 122x230x150 mm 12,3 W 220-240V 50/60Hz 1093 lm Led 4000 K 1   II 100-1011182M
  Black RAL 9005 122x230x150 mm 12,3 W 220-240V 50/60Hz 1093 lm Led 4000 K 1   II 100-1011182N
  Anthracite RAL 7016 122x230x150 mm 12,3 W 220-240V 50/60Hz 1093 lm Led 4000 K 1   II 100-1011182S
  White RAL 9003 122x230x150 mm 12,3 W 220-240V 50/60Hz 1063 lm Led 3000 K 1   II 100-1011184B
  Corten 122x230x150 mm 12,3 W 220-240V 50/60Hz 1063 lm Led 3000 K 1   II 100-1011184J
  Grey RAL 9006 122x230x150 mm 12,3 W 220-240V 50/60Hz 1063 lm Led 3000 K 1   II 100-1011184M
  Black RAL 9005 122x230x150 mm 12,3 W 220-240V 50/60Hz 1063 lm Led 3000 K 1   II 100-1011184N
  Anthracite RAL 7016 122x230x150 mm 12,3 W 220-240V 50/60Hz 1063 lm Led 3000 K 1   II 100-1011184S
VERSUS

    Accessories

      Download

      Istruzioni A3 Versus Led ENG.PDF

      Istruzioni A3 Versus Led ITA.PDF

      Sensore di presenza ITA_ENG.PDF

      UE-Versus FBT-ENG.PDF

      UE-Versus FBT-ITA.PDF

      UE-Versus LED-ENG.PDF

      UE-Versus LED-ITA.PDF

      VERSUS E27 istruzioni A3 ENG.PDF

      VERSUS E27 istruzioni A3 ITA.PDF

      Versus.DWG

      Versus.DXF

      Versus.RAR
