Outdoor residential lighting
Wall
DELUX UP

DELUX UP

Protection from external agents
Impact protection
RG
WI-FI on/off
WI-FI dimm
Anthracite RAL 7016 Corten Grey RAL 9006 White RAL 9016

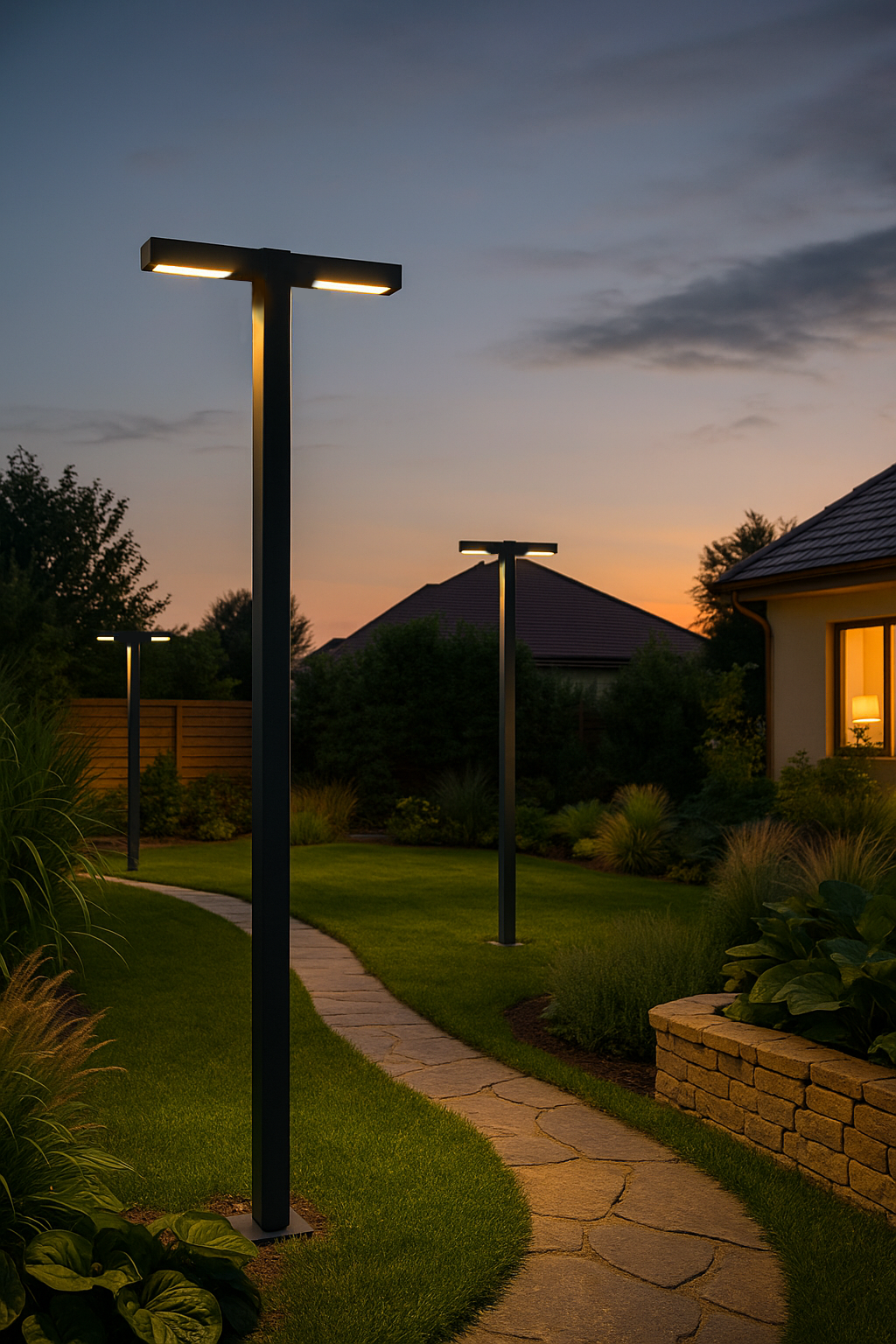

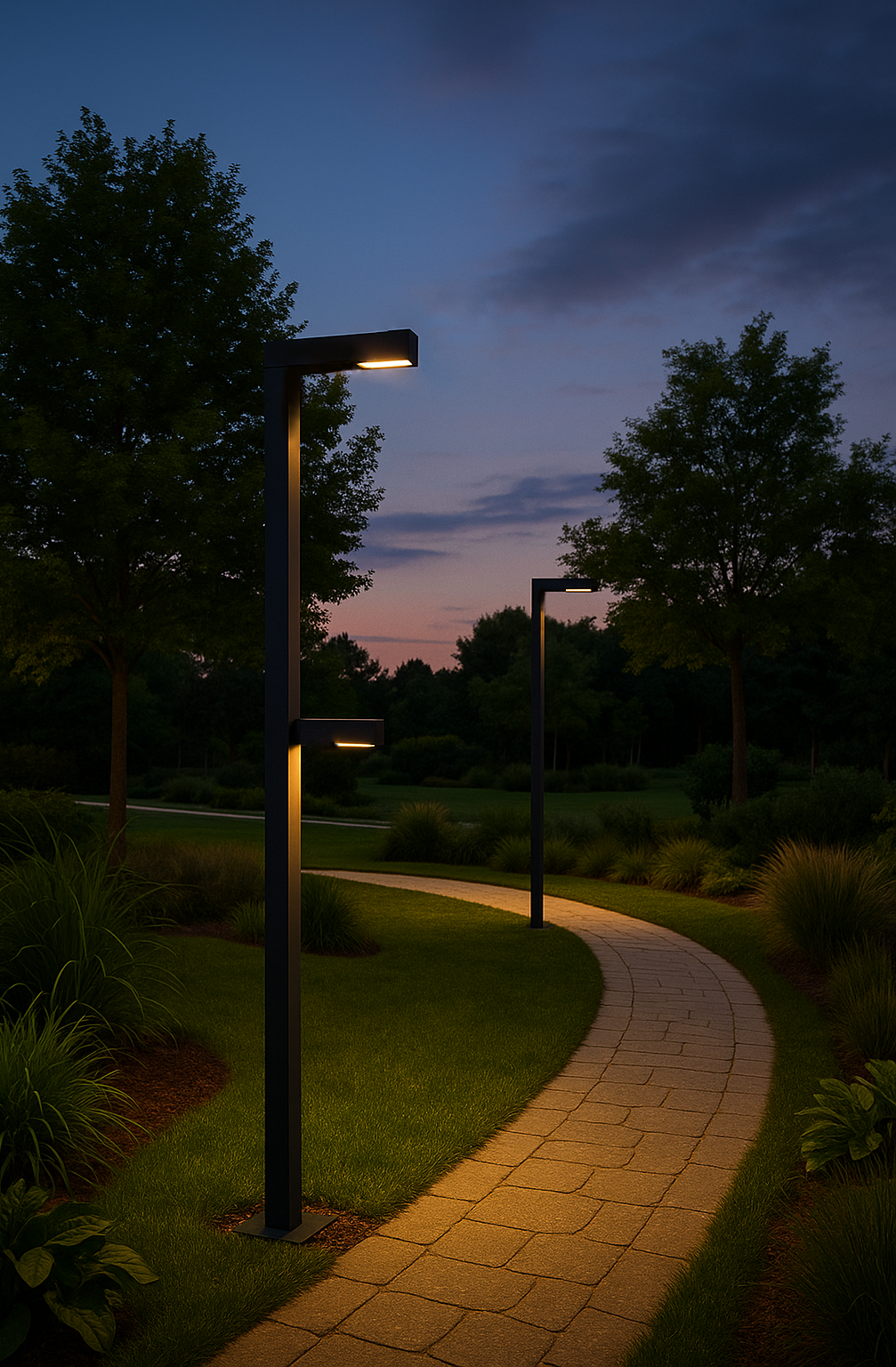

Urban lighting fixture for wall or pole installation. Made of extruded anodized and powdercoated aluminum, pre-treated specifically for outdoor use. Transparent, UV-resistant PMMA lens. Stainless steel wall mounting bracket. Dedicated square poles, for in-ground installation or flanged mounting, with or without a terminal block, must be ordered separately. Remote control via Wi-Fi.

DELUX UP
DELUX UP

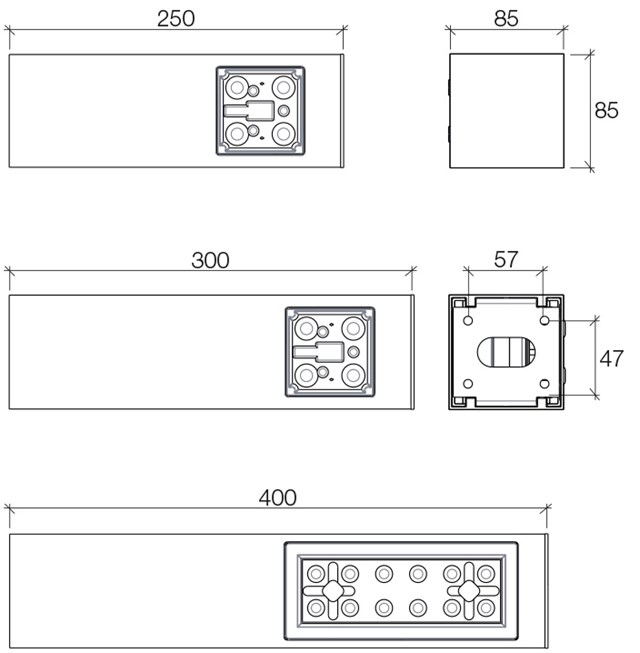

Color Size Optics Power Power supply Luminaire Output Light source Dimmable driver Packing Insulation class Cod
White RAL 9016 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1080 lm Led 3000 K DALI 1 II 100-122117DB
Corten 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1080 lm Led 3000 K DALI 1 II 100-122117DJ
Grey RAL 9006 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1080 lm Led 3000 K DALI 1 II 100-122117DM
Anthracite RAL 7016 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1080 lm Led 3000 K DALI 1 II 100-122117DS
White RAL 9016 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1215 lm Led 4000 K DALI 1 II 100-122117FB
Corten 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1215 lm Led 4000 K DALI 1 II 100-122117FJ
Grey RAL 9006 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1215 lm Led 4000 K DALI 1 II 100-122117FM
Anthracite RAL 7016 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1215 lm Led 4000 K DALI 1 II 100-122117FS
White RAL 9016 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1215 lm Led 4000 K   1 II 100-1221182B
Corten 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1215 lm Led 4000 K   1 II 100-1221182J
Grey RAL 9006 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1215 lm Led 4000 K   1 II 100-1221182M
Anthracite RAL 7016 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1215 lm Led 4000 K   1 II 100-1221182S
White RAL 9016 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1080 lm Led 3000 K   1 II 100-1221184B
Corten 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1080 lm Led 3000 K   1 II 100-1221184J
Grey RAL 9006 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1080 lm Led 3000 K   1 II 100-1221184M
Anthracite RAL 7016 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1080 lm Led 3000 K   1 II 100-1221184S
White RAL 9016 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1215 lm Led 4000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122119GB
Corten 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1215 lm Led 4000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122119GJ
Grey RAL 9006 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1215 lm Led 4000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122119GM
Anthracite RAL 7016 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1215 lm Led 4000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122119GS
White RAL 9016 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1080 lm Led 3000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122119HB
Corten 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1080 lm Led 3000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122119HJ
Grey RAL 9006 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1080 lm Led 3000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122119HM
Anthracite RAL 7016 250x85x85 mm Stradale Short 10 W 220-240V 50-60Hz 176-240Vdc 1080 lm Led 3000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122119HS
White RAL 9016 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2160 lm Led 3000 K DALI 1 II 100-122217DB
Corten 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2160 lm Led 3000 K DALI 1 II 100-122217DJ
Grey RAL 9006 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2160 lm Led 3000 K DALI 1 II 100-122217DM
Anthracite RAL 7016 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2160 lm Led 3000 K DALI 1 II 100-122217DS
White RAL 9016 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2250 lm Led 4000 K DALI 1 II 100-122217FB
Corten 250x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2250 lm Led 4000 K DALI 1 II 100-122217FJ
Grey RAL 9006 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2250 lm Led 4000 K DALI 1 II 100-122217FM
Anthracite RAL 7016 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2250 lm Led 4000 K DALI 1 II 100-122217FS
White RAL 9016 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2250 lm Led 4000 K   1 II 100-1222182B
Corten 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2250 lm Led 4000 K   1 II 100-1222182J
Grey RAL 9006 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2250 lm Led 4000 K   1 II 100-1222182M
Anthracite RAL 7016 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2250 lm Led 4000 K   1 II 100-1222182S
White RAL 9016 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2160 lm Led 3000 K   1 II 100-1222184B
Corten 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2160 lm Led 3000 K   1 II 100-1222184J
Grey RAL 9006 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2160 lm Led 3000 K   1 II 100-1222184M
Anthracite RAL 7016 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2160 lm Led 3000 K   1 II 100-1222184S
White RAL 9016 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2250 lm Led 4000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122219GB
Corten 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2250 lm Led 4000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122219GJ
Grey RAL 9006 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2250 lm Led 4000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122219GM
Anthracite RAL 7016 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2250 lm Led 4000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122219GS
White RAL 9016 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2160 lm Led 3000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122219HB
Corten 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2160 lm Led 3000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122219HJ
Grey RAL 9006 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2160 lm Led 3000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122219HM
Anthracite RAL 7016 300x85x85 mm Stradale Short 19 W 220-240V 50-60Hz 176-240Vdc 2160 lm Led 3000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122219HS
White RAL 9016 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3688 lm Led 3000 K DALI 1 II 100-122317DB
Corten 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3688 lm Led 3000 K DALI 1 II 100-122317DJ
Grey RAL 9006 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3688 lm Led 3000 K DALI 1 II 100-122317DM
Anthracite RAL 7016 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3688 lm Led 3000 K DALI 1 II 100-122317DS
White RAL 9016 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3880 lm Led 4000 K DALI 1 II 100-122317FB
Corten 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3880 lm Led 4000 K DALI 1 II 100-122317FJ
Grey RAL 9006 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3880 lm Led 4000 K DALI 1 II 100-122317FM
Anthracite RAL 7016 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3880 lm Led 4000 K DALI 1 II 100-122317FS
White RAL 9016 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3880 lm Led 4000 K   1 II 100-1223182B
Corten 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3880 lm Led 4000 K   1 II 100-1223182J
Grey RAL 9006 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3880 lm Led 4000 K   1 II 100-1223182M
Anthracite RAL 7016 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3880 lm Led 4000 K   1 II 100-1223182S
White RAL 9016 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3688 lm Led 3000 K   1 II 100-1223184B
Corten 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3688 lm Led 3000 K   1 II 100-1223184J
Grey RAL 9006 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3688 lm Led 3000 K   1 II 100-1223184M
Anthracite RAL 7016 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3688 lm Led 3000 K   1 II 100-1223184S
White RAL 9016 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3880 lm Led 4000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122319GB
Corten 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3880 lm Led 4000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122319GJ
Grey RAL 9006 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3880 lm Led 4000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122319GM
Anthracite RAL 7016 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3880 lm Led 4000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122319GS
White RAL 9016 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3688 lm Led 3000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122319HB
Corten 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3688 lm Led 3000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122319HJ
Grey RAL 9006 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3688 lm Led 3000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122319HM
Anthracite RAL 7016 400x85x85 mm Stradale Short 27 W 220-240V 50-60Hz 176-240Vdc 3688 lm Led 3000 K Wi-Fi (ON/OFF - DIMM) 1 II 100-122319HS
DELUX UP
DELUX UP

    Pairings

      Accessories

        Similar

          Download

          UE-DELUX UP-ENG.PDF

          UE-DELUX UP-ITA.PDF

          100-1221182S.LDT

          100-1221184S.LDT

          100-1222182S.LDT

          100-1222184S.LDT

          100-1223182S.LDT

          100-1223184S.LDT
