Outdoor residential lighting
Ground
DELUX ROUND

DELUX ROUND

Warranty
Protection from external agents
Impact protection
Pre-wired
RG
WI-FI on/off
Corten Grey RAL 9006 Anthracite RAL 7016 White RAL 9016

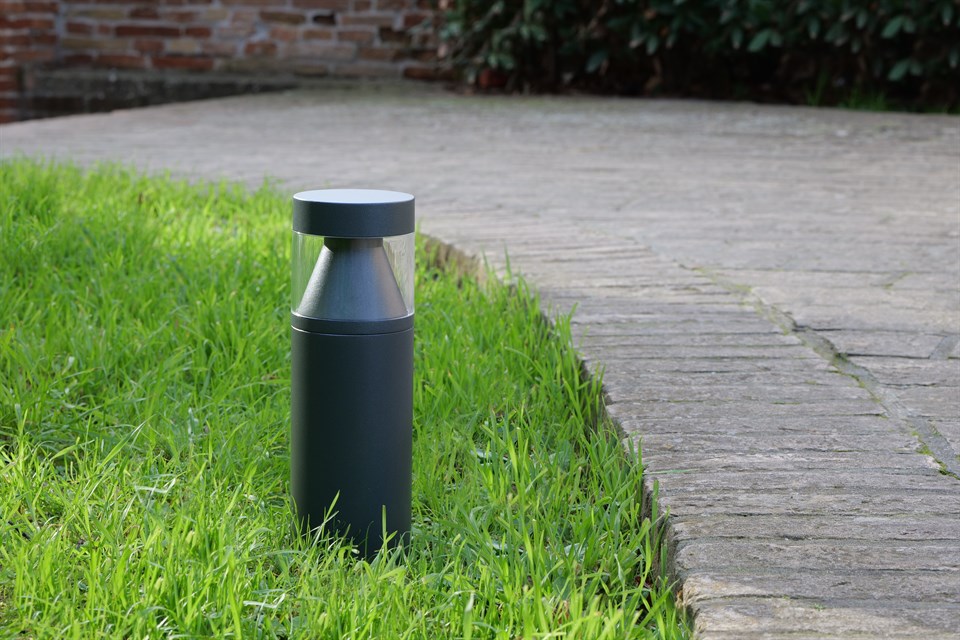

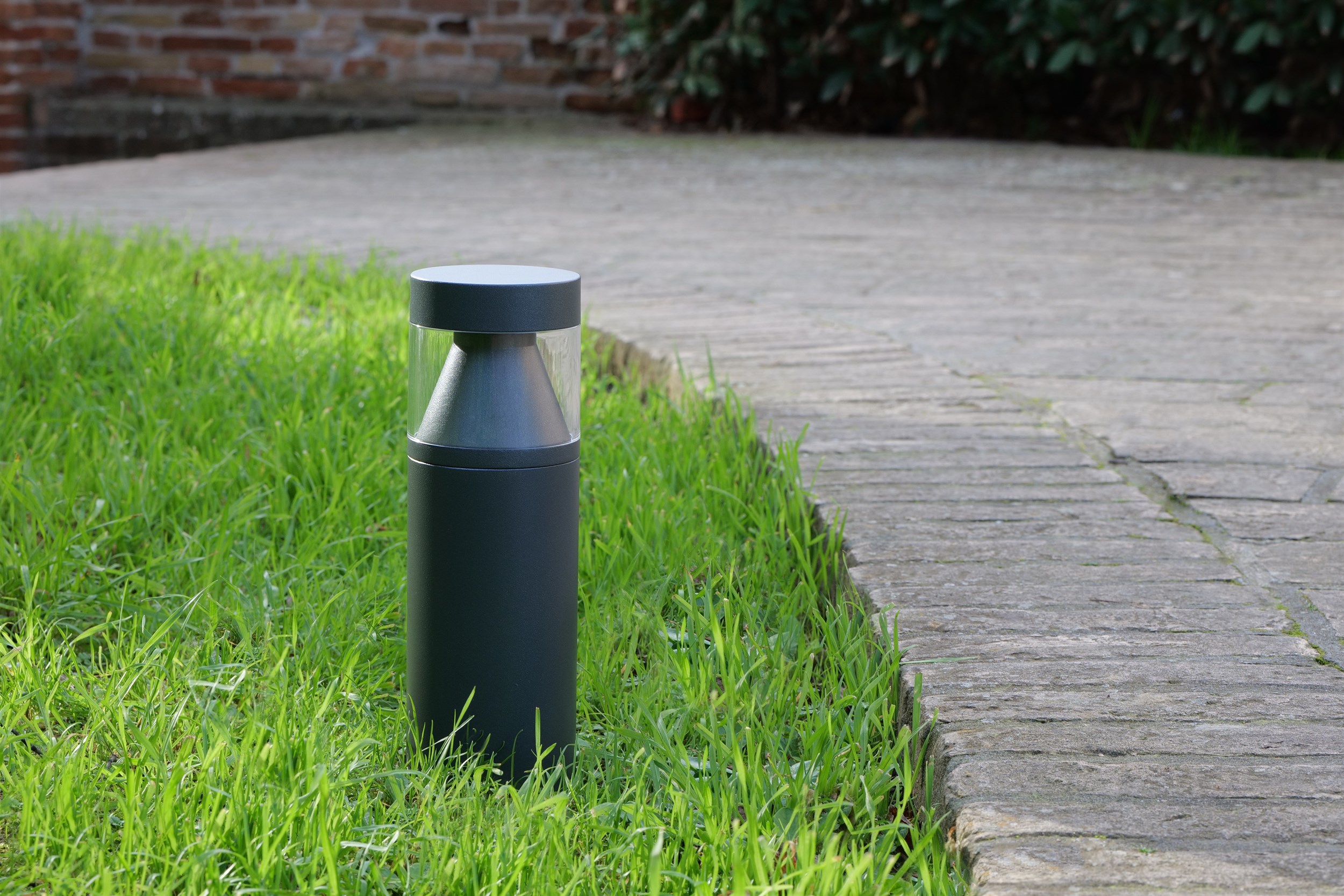

Round shaped bollard in extruded aluminium anodised and powder-coated with pre-treatment specific for outdoor. Top cover in die-cast aluminium and base for plinth/floor installation in reinforced thermoplastic. Transparent PMMA diffuser UV resistant, and mains powered Led’s circuit. Supplied with PG9 metallic cable gland and cable H05RN-F 3x0,75mm2. Accessory for light beam 180° to be ordered separately. Remote control via Wi-Fi.

DELUX ROUND
DELUX ROUND
Color Size Power Power supply Luminaire Output Light source Dimmable driver Packing Insulation class Cod
White RAL 9016 Ø90x470 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K   1 I 100-1028082B
Corten Ø90x470 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K   1 I 100-1028082J
Grey RAL 9006 Ø90x470 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K   1 I 100-1028082M
Anthracite RAL 7016 Ø90x470 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K   1 I 100-1028082S
White RAL 9016 Ø90x470 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K   1 I 100-1028084B
Corten Ø90x470 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K   1 I 100-1028084J
Grey RAL 9006 Ø90x470 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K   1 I 100-1028084M
Anthracite RAL 7016 Ø90x470 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K   1 I 100-1028084S
White RAL 9016 Ø90x470 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K Wi-Fi (ON/OFF) 1 I 100-102809GB
Corten Ø90x470 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K Wi-Fi (ON/OFF) 1 I 100-102809GJ
Grey RAL 9006 Ø90x470 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K Wi-Fi (ON/OFF) 1 I 100-102809GM
Anthracite RAL 7016 Ø90x470 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K Wi-Fi (ON/OFF) 1 I 100-102809GS
White RAL 9016 Ø90x470 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K Wi-Fi (ON/OFF) 1 I 100-102809HB
Corten Ø90x470 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K Wi-Fi (ON/OFF) 1 I 100-102809HJ
Grey RAL 9006 Ø90x470 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K Wi-Fi (ON/OFF) 1 I 100-102809HM
Anthracite RAL 7016 Ø90x470 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K Wi-Fi (ON/OFF) 1 I 100-102809HS
White RAL 9016 Ø90x845 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K   1 I 100-1028182B
Corten Ø90x845 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K   1 I 100-1028182J
Grey RAL 9006 Ø90x845 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K   1 I 100-1028182M
Anthracite RAL 7016 Ø90x845 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K   1 I 100-1028182S
White RAL 9016 Ø90x845 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K   1 I 100-1028184B
Corten Ø90x845 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K   1 I 100-1028184J
Grey RAL 9006 Ø90x845 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K   1 I 100-1028184M
Anthracite RAL 7016 Ø90x845 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K   1 I 100-1028184S
White RAL 9016 Ø90x845 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K Wi-Fi (ON/OFF) 1 I 100-102819GB
Corten Ø90x845 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K Wi-Fi (ON/OFF) 1 I 100-102819GJ
Grey RAL 9006 Ø90x845 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K Wi-Fi (ON/OFF) 1 I 100-102819GM
Anthracite RAL 7016 Ø90x845 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K Wi-Fi (ON/OFF) 1 I 100-102819GS
White RAL 9016 Ø90x845 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K Wi-Fi (ON/OFF) 1 I 100-102819HB
Corten Ø90x845 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K Wi-Fi (ON/OFF) 1 I 100-102819HJ
Grey RAL 9006 Ø90x845 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K Wi-Fi (ON/OFF) 1 I 100-102819HM
Anthracite RAL 7016 Ø90x845 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K Wi-Fi (ON/OFF) 1 I 100-102819HS
White RAL 9016 Ø90x275 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K   1 I 100-1028282B
Corten Ø90x275 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K   1 I 100-1028282J
Grey RAL 9006 Ø90x275 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K   1 I 100-1028282M
Anthracite RAL 7016 Ø90x275 mm 10 W 220-240V 50/60Hz 663 lm Led 4000 K   1 I 100-1028282S
White RAL 9016 Ø90x275 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K   1 I 100-1028284B
Corten Ø90x275 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K   1 I 100-1028284J
Grey RAL 9006 Ø90x275 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K   1 I 100-1028284M
Anthracite RAL 7016 Ø90x275 mm 10 W 220-240V 50/60Hz 669 lm Led 3000 K   1 I 100-1028284S
DELUX ROUND

    Pairings

      Accessories

        Similar

          Download

          Delux Round.DWG

          Delux Round.DXF

          Delux Round.RAR

          ISTRUZIONI_DELUX ROUND_A4_ING.PDF

          ISTRUZIONI_DELUX ROUND_A4_ITA.PDF

          UE-Delux Round-ENG.PDF

          UE-Delux Round-ITA.PDF
